EG 5500 CL IT T HONDA Generator

Digital AVR controlled

List price: 2.428,00 € - 21%
Ciampelli Price: 1.918,12 €

Share on:

Description
Photogallery
Related products

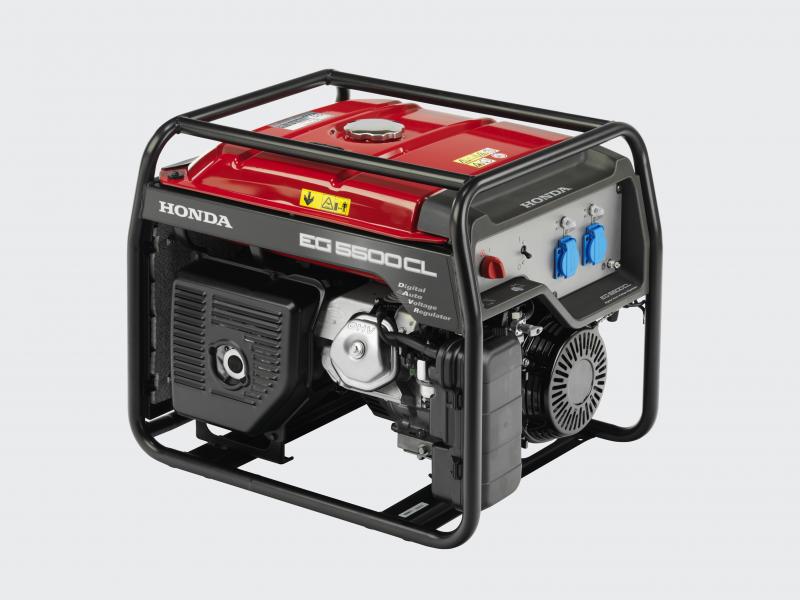

EG 5500 CL IT T HONDA Generator

New model EG5500 features digital automatic voltage regulation which provides clean stable electricity for the most advanced electrical appliances. Housed in a tough

tubular frame with long range fuel tank.

Sizing the load

Use the rated output for continuous operation; also allow for the starting demand of electric motors.

Technical specifications

Specification	Value
Output technology	D-AVR
Type	Single phase
Maximum output (W)	5500
Rated output (W)	5000
Rated voltage (V)	230
Rated frequency (Hz)	50
Rated current (A)	21.7
Engine model	GX390T2
Engine type	4-stroke, OHV, 1 cylinder
Displacement (cm³)	389
Bore × stroke (mm)	88 x 64
Engine speed (rpm)	3000
Cooling system	Forced air
Ignition system	Transistor
Oil capacity (L)	1.1
Fuel tank capacity (L)	24
Operating time at rated	8h10
Sound pressure level at workstation (dB(A))	82
Guaranteed sound power level (dB(A))	97
Length (mm)	681
Width (mm)	530
Height (mm)	571
Dry weight (kg)	82,5
